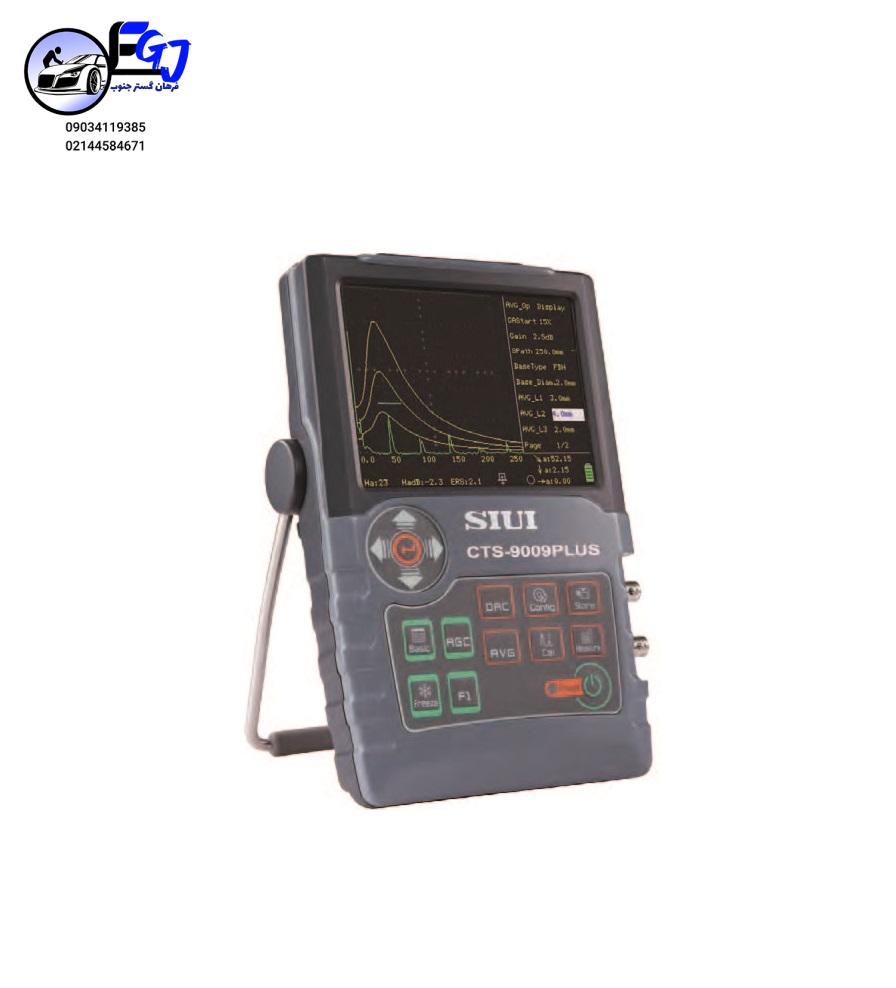

عیب یاب التراسونیک برند SIUI مدل CTS-9009PLUS

Features

High Performance: With adjustable spike & square wave pulser up to 500V and operation frequency up to 20MHz, this system can achieve precise flaw detection from thin plates to large forged pieces.

Rich Functions: The system features functions such as auto gain control, peak memory, DAC, AVG/DGS, probe frequency measurement, cineloop, curved surface correction, AWS, API and ports like USB, Ethernet and VGA.

Environmental Protection: The system is designed based on IP65 (Optional IP67) standard, suitable for complex industrial flaw detection environment.

Super-low Consumption: The configured Li-polymer battery can support up to 7-hour continuous operation.

Easy Operation: There are just a few concisely-defined keys, easy to be operated with only one hand.

Compact & Portable: The whole unit weight (battery included) is approx. 1.25kg, suitable for aloft and field work.

Function

Operating frequency range: 0.5~20MHz, highlighting advantages of high sensitivity and broadband.

Adjustable pulse width square wave transmission is up to 500V.

80 ~ 2000Hz PRF with 10 steps adjustable: avoid reverberation signals during flaw detection.

The convenient and useful probe spectrum analysis function enables the users to know the probe waveform, spectrum and center frequency, resulting in more precise flaw detection evaluation.

Measure crack height by edge peak echo method.

Max. sampling rate 240MHz; Measurement resolution 0.1mm.

RF (Radio Frequency) echo display: good to thin-wall material measurement, academic research or qualitative analysis.

The DAC curve works with echo compare function, making echo quantification of different distances and amplitudes more convenient.

The AGC (auto gain control) function, together with peak echo and image freeze function, help quickly identify the flaw highest echo, enabling efficient flaw detection.

Advanced thickness measurement function available.

Featured with AWS D1.1/D1.5 and API 5UE evaluation standards.

The gate magnifier function magnifies the echo area within the gate to the whole screen display.

Up to 500 sets of curve and waveform can be saved for various workpieces and flaw detection standards.
