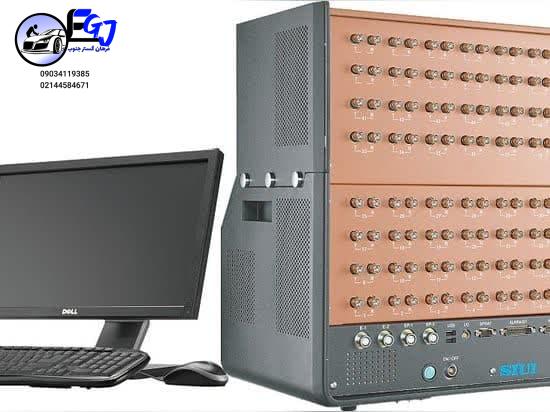

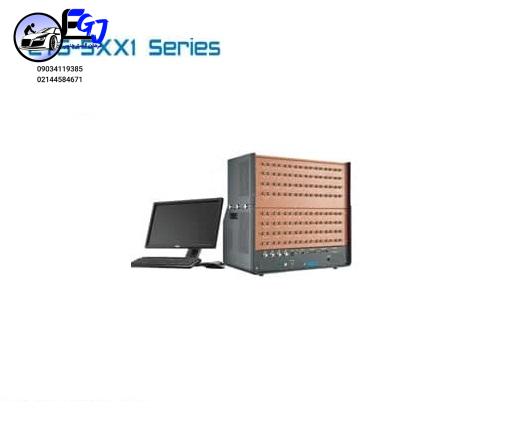

عیب یاب التراسونیک دیجیتال چندکاناله برند siui مدل CTS-5XX1

عیب یاب التراسونیک دیجیتال چندکاناله برند siuiمدلCTS-5XX1

مناسب جهت تستهای آنلاین

قابلیت ارائه از 8 تا 128 کانال

عیب یابی در خط ، دقت بالا ، پوشش دهی تنوع پراب های مختلف التراسونیک

در سه نوع پر مصرف:پروب لاین فوکوس ، نان فوکوس ، پوینت فوکوس وسایر

DESCRIPTION
Based on PC platform and by working with probe detection and mechanical devices,the new series can achieve automatic ultrasound testing with high accuracy, reliability and high efficiency

It can support from 32 to 128 ultrasound channels (there are four types of housing for 32/64/96/128 channels)
Each PCB has 8 independent T/R channels
For the same PCB, any transmission channel can combine with any receiver channel. Each PCB can have combination up to 8 groups
For the same PCB, the channels work in turn. Different PCBs can work at the same time or work in turn
Each ultrasound channel has conventional UT, with max. PRF up to 2.5KHz/channel
High performance T/R front-end. Square wave transmission can be up to 500V
Working frequency range: 0.5-20MHz
High-speed digital signal processing and transmission
A-scan real-time sound and light alarm function, passive measurement or marker interface, input and output control functions
B scan full time recording, measurement and calculation, and movie replay functions based on time or encoder
2D rotary encoder connector
Automatic inspection of beginning/ending sensor input control
Data management and statistics functions
Remote control function by PC through LAN connector
Wifi transmission
