براقیت سنج تک زاویه برند 3NH مدل YG60

Product Features YG60  :

1. Elegant Design combined with aesthetics and ergonomics;

2. With auto-calibration function;

3. Meet  requirements of JJG696;

4. Large storage to save over 35000 data;

5. Auto Power-off within optional 30-120 seconds;

6. Comply to ISO2813,ASTM523, GB/T9754;

7. With PC software for quality report, more extend functions;

8. With multi working modes and multi-functions for most customers’ requirements.Application: Widely used in the filed of paints,coating,plastics,ink,rubber,printing,paper, glass, handware, ceramic, marble etc.

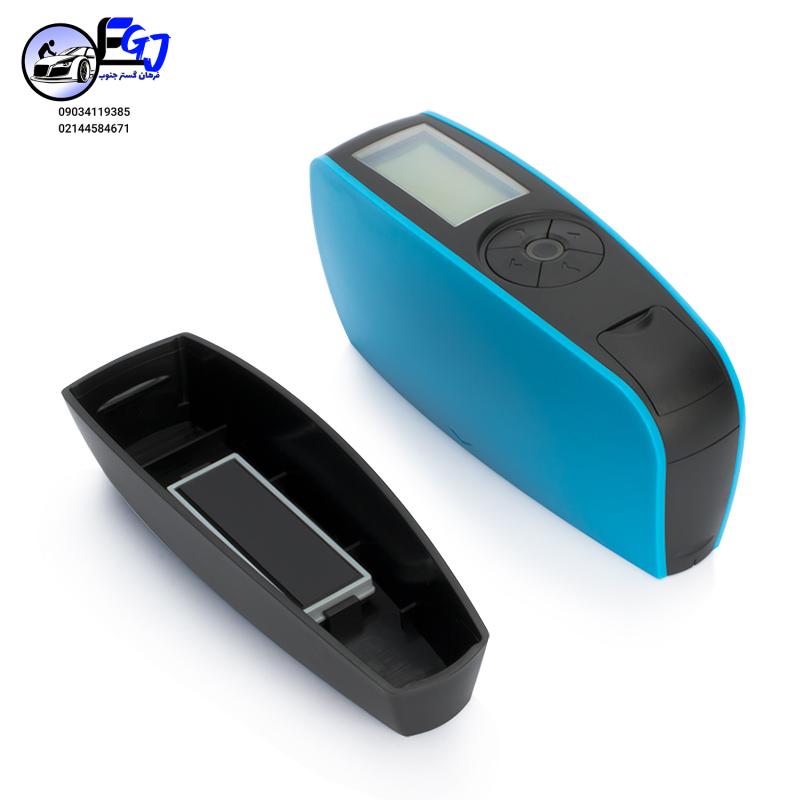

Model YG60 60°Accurate Gloss Meter fgj-ndt.ir

Measuring Angle 60°

Measurement Range 60°: 0-1000GU

Division Value 0.1GU

Measuring Modes Basic mode; Statistic mode; Continuous mode;

QC mode

Measuring Time 0.5S

Repeatability

0~100GU : ±0.2GU;

100~2000GU : ±0.2%GU

Accurate Conform with JJG696  requirements of gloss meter

Auto Power-off Time Within 30s-120s

Long-time Calibration Automatically check and made the calibration

Language Chinese & English

Storage 35000(Basic mode &Statistic mode : 1500; Continuous mode : 10000; QC mode: 10000)

Display 2.3 inch white and black screen

Size 160*52*84mm

Weight About 300g

Power Supply 1pc dry-cell

 battery(can measure 10000 times) or use USB Charge

Interface USB

PC Software GQC6 QC software can printing testing report and with more extended functions fgj-ndt.ir

Operation Temperature Range 0-40℃（32-104° F）

Storage Temperature Range -20-50℃（-4-122° F）

Humidity Range < 85% RH, without condensation

Standard Accessories USB cable, user manual, calibration plate, QC software

Optional Accessories Miniature printer,Bluetooth

Notification: the technical parameter is only for reference .
